Nature of Mathematical modelling
MAS 864
final projectpage
Axel Kilian
week one - bouncing ball

Bouncing ball in java
The ball is released at a variable height and bounces with 0.95 of its speed from the bounding box enclosures.
As its speed in the y direction approaches 0 the simulation blows up and the ball goes in uncontrolled spin of the screen
I tried to controll this effect in the simulation but was not successful.

bouncing ball as postscript
The balls path is drawn as a postscript path and saved as an eps file. The starting position and speeds can be

chapter 6 - ordinary differential equations
runge kutta applet - varying stepsize
applet source code
chapter 9 -cellular automata and lattice gas
HPP - square lattice cellular automata FHP - hexagon lattice grid cellular automata earlier sketches of unfinished hex grid CA
without random seeding without random seeding box1 box starting condition only
with random seeding of surrounding area with random seeding of surrounding area box2 box + random
source code source code box3 mouse seeding
    box4 - hexagonal grid distorted into aligned shape and centered starting box - mouse seeding

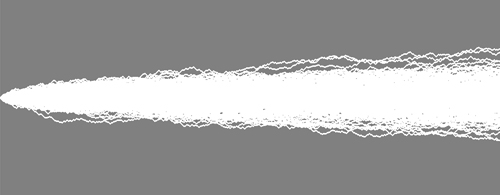

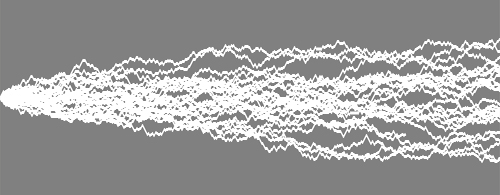

10 random trajectory using LSFR random number generator with order 32 (takes about 20 sec to generate the 10000 points - sorry very slow implementation of LSFR)
function fitting
results as text file error in a and b depending on
sig^2 n,i/sig^2gr = sum j (V^2 i,j/w^2 j)
x = ran1(&idum)
y = 2+3x+gaussrand 2.179988 +- 0.101654
2.650558 +- 0.174769

Chi-squared 99.425986

gaussrand = gasdev(&idum)*SPREAD
(b) 100 independent data sets
(c) bootstrapping
inverse wavelet transform
the applet calculating the inverse wavelet transform of vector 2^12 with 1 at 5 and 30 (memory intensive - might run out of memory) The source code in java

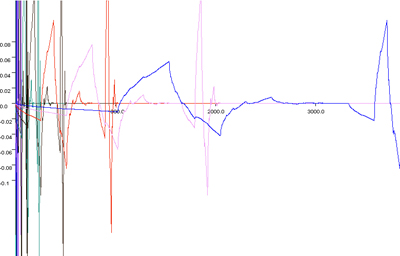

all 12 steps static drawn into same graph
animated applet - showing the 12 steps leading up to the result
screenshot of vector of 2^12 length


and screenshot with the x vector at eac of the 12 steps (on the far left is the starting condition with5 at 1and 30 at 1
simplex search

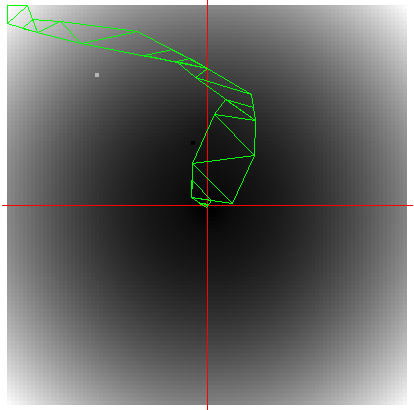

Applet showing the search
source code for simplex code of function
f(x,y) = 0.2(x^2+y^2)-2 *exp(-(x^2)+y^2)) - exp(-(x^2+(y+4)^2))/2)
polynomial fitting

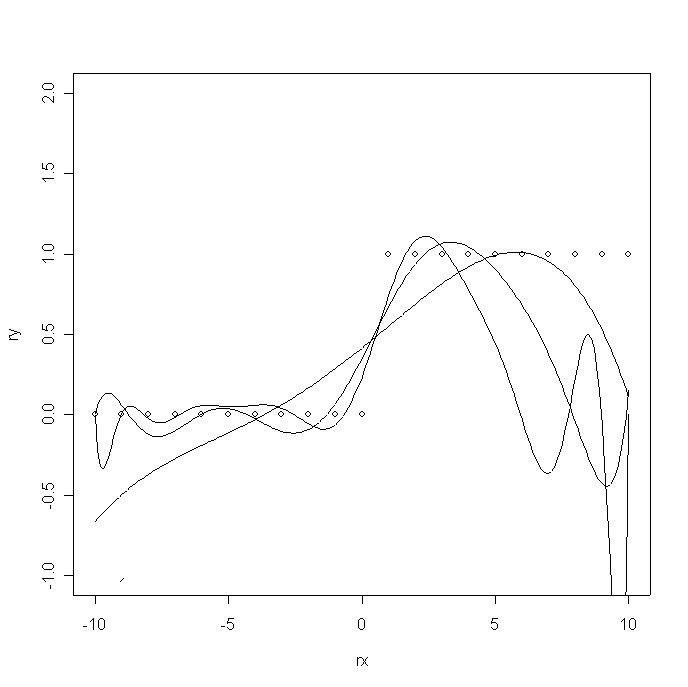

polynomial fitting of order 5,10 and 15- source code for polyfunc - function written in "R" used to find coefficients - fit is not correct
order 5 coefficients
[1,] 0.4153837165
[2,] 0.1341669391
[3,] 0.0036503410
[4,] -0.0009534706
[5,] -0.0001057958

order 10 coefficients
[1,] 3.505278e-01
[2,] 3.216823e-01
[3,] 2.130687e-02
[4,] -1.792592e-02
[5,] -8.046099e-04
[6,] 4.715427e-04
[7,] 5.854754e-06
[8,] -5.914938e-06
[9,] -2.132643e-09
[10,] 2.678003e-08

order15 coefficients
[1,] 2.356892e-01
[2,] 4.519468e-01
[3,] 1.179799e-01
[4,] -5.303195e-02
[5,] -1.512227e-02
[6,] 3.209537e-03
[7,] 8.446648e-04
[8,] -1.094209e-04
[9,] -2.568237e-05
[10,] 1.978109e-06
[11,] 4.228687e-07
[12,] -1.744958e-08
[13,] -3.487685e-09
[14,] 5.886214e-11
[15,] 1.121760e-11
Control Theory

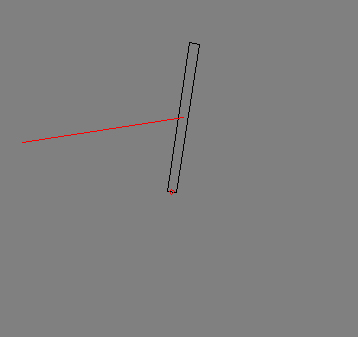

Inverted pendulum
An inverted pendulum with a mass of 1kg and a length of 1m is attached to a fix pivot on a table. It can be controlled by a Force F that acts at the center of the rod.

(a) first order equations that describe the system
dot_dot_theta = -3/2 F/ml cos theta +3/2 g/l sin theta
Matrix A = [[0,1],[3/2 g/l, 0]] ; Matrix B = [0, 1/M]
matrix C = [B, AB] is of full rank therefore it is controllable problem

(b) F = k1 theta + k2 dot_theta for k1 = 126.67 k2 = 266.67 eigenvalues are both positive

(c) applet - not finished

final project
OpenFEM site -
cached version as site was down recently
Project description

The modeling of form rarely takes into account structural performance of the elements that are being modeled. The proposal is to study how optimization and structural analysis can be used to influence form making in design process.
Finite elment analysis seems like an approriate method to model material properties and to give feedback to form making process.

For instance a plank of wood laid onto a curved surface takes a certain path based on its flexibility and crosssection and based on the curvature the surface has. At a certain point the plank will not be able to follow the surface anymore. One possible apporach could be to find distribution of planks on asurface for optimal coverage based on the mateterial properties. (depending on level I can achieve in FEM)

Examples of formfinding through computational models

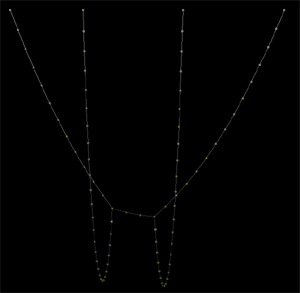

Genetic Algorithm based approach to finding developable strips on arbitrary NURBS surfaces (final project 6.836 spring 2002) hanging chain model
java applet
